Silencers / noise absorber
UNIC is a supplier of silencers, devices designed to significantly reduce the noise generated by compressed air when released into the atmosphere through designated exhausts.

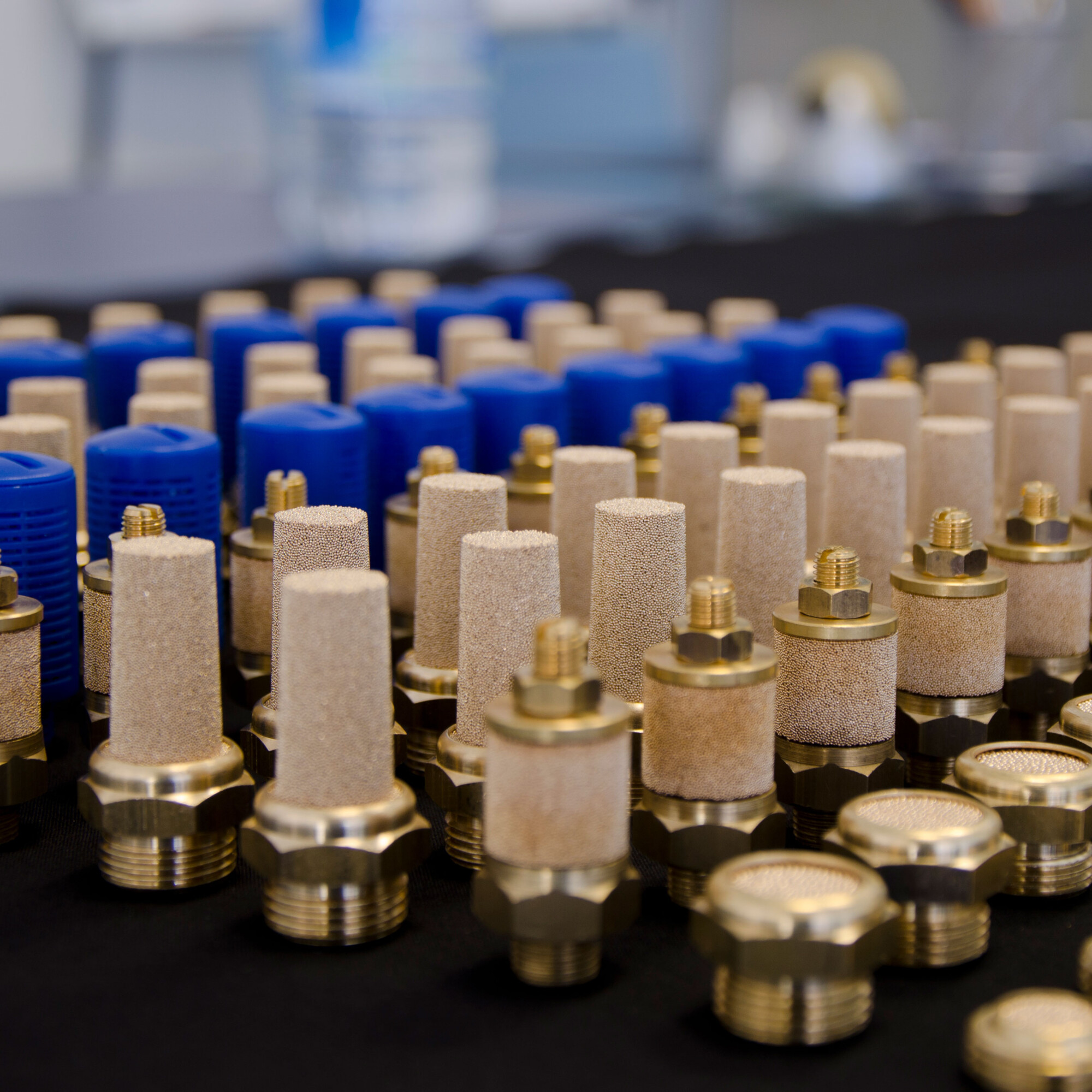

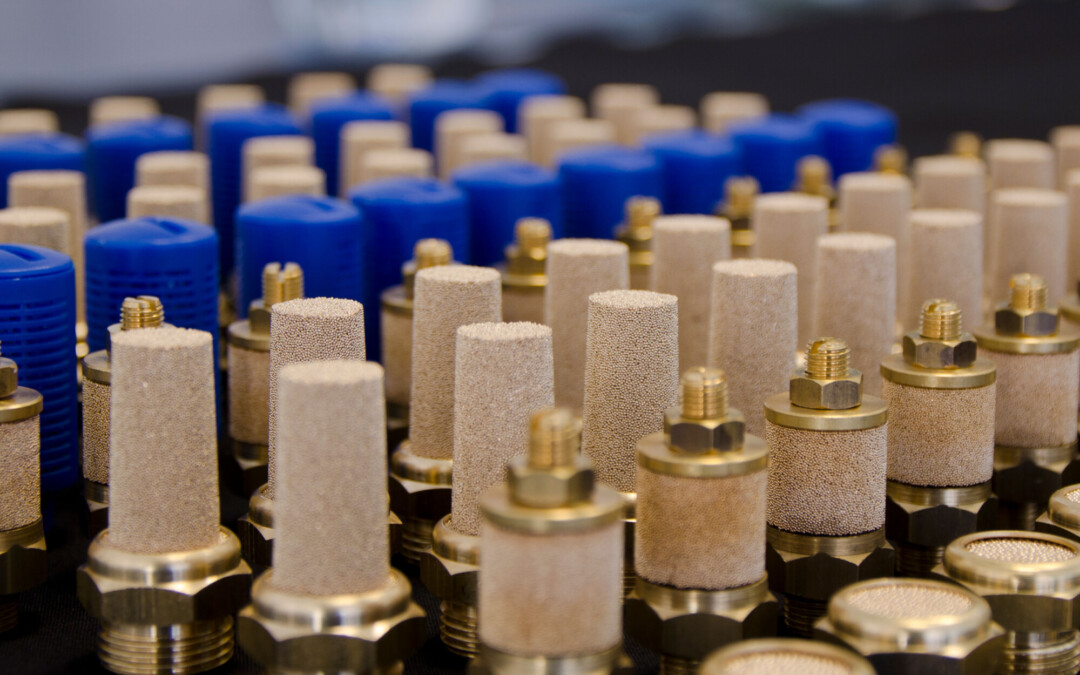

These silencers consist of a porous metallic body (sintered bronze – stainless steel mesh) or synthetic resins containing metal grids or other porous materials. The air flow directed to the exhaust is finely divided as it passes through these devices, resulting in significantly reduced noise levels.
Key Characteristics of Our Silencers:
Standard Availability
Tube Diameter: 4 to 40 mm
Thread Types
M5 to 1”
Materials
AR: Copper-plated steel body
OT: CW641N brass body
IN-NIX: Stainless steel body
Silencer Material: Sintered bronze, stainless steel mesh, felt, sound-absorbing materials
Pressure Rating
max 12 bar
Temperature Range
-10° C to +70°C
Average Porosity
40%
Filtration Threshold
36 mm
Applications
Compressed air, Food industry
