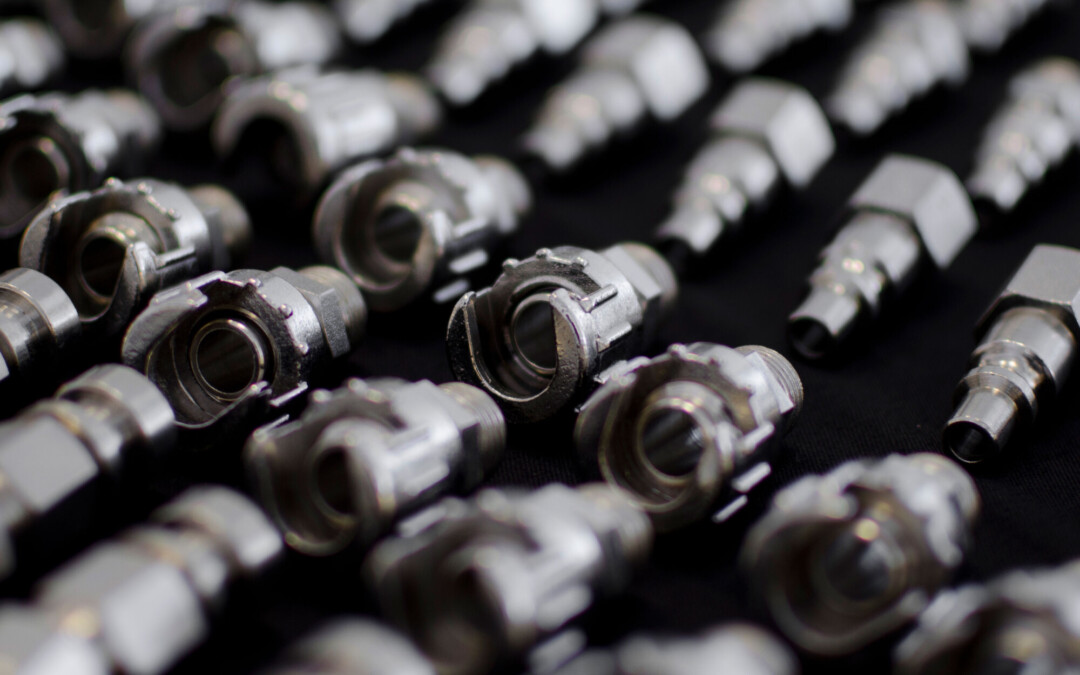

Quick-Connect Valves and Fittings
UNIC is a supplier of quick-connect valves and fittings, devices that allow the easy and rapid disconnection of the tubing from the main system without interrupting the compressed air flow from the source.
Our Range:
Universal Series
Allows connection of the three types of fittings with Italy, USA, and German profiles to a single valve.
Mignon Series
For applications requiring reduced space and/or lower flow rates.
Each profile is manufactured according to international standard sizes, ensuring interchangeability at any time.
Here are the characteristics of our quick-connect valves and fittings:
Materials
Body: Nickel-plated CW614 brass / Zinc-coated steel
Nut: Nickel-plated CW614 brass / Zinc-coated steel
Cylinder: Nickel-plated CW614 brass / Zinc-coated steel
Valve: Nickel-plated CW614 brass / Zinc-coated steel
Balls: Stainless steel O-Ring: NBR 70 Shore
Springs: Stainless steel
Pressure
max 12 bar
Operating Temperature
-10° C to +80°C
Applications
Compressed air
Items marked with * are nickel-plated brass.
