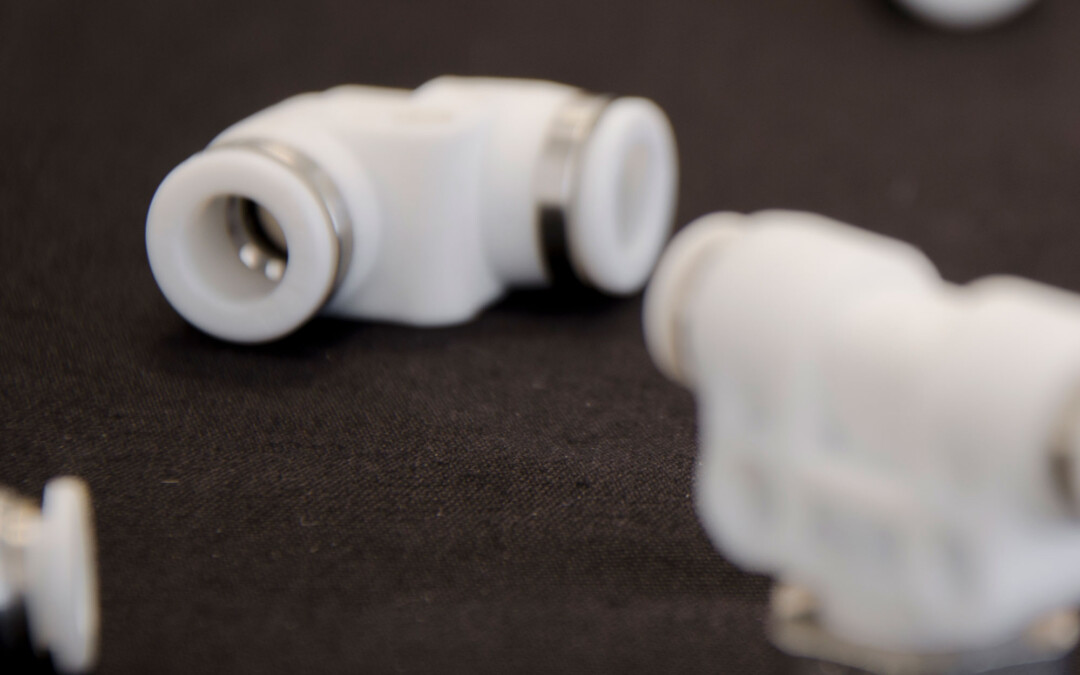

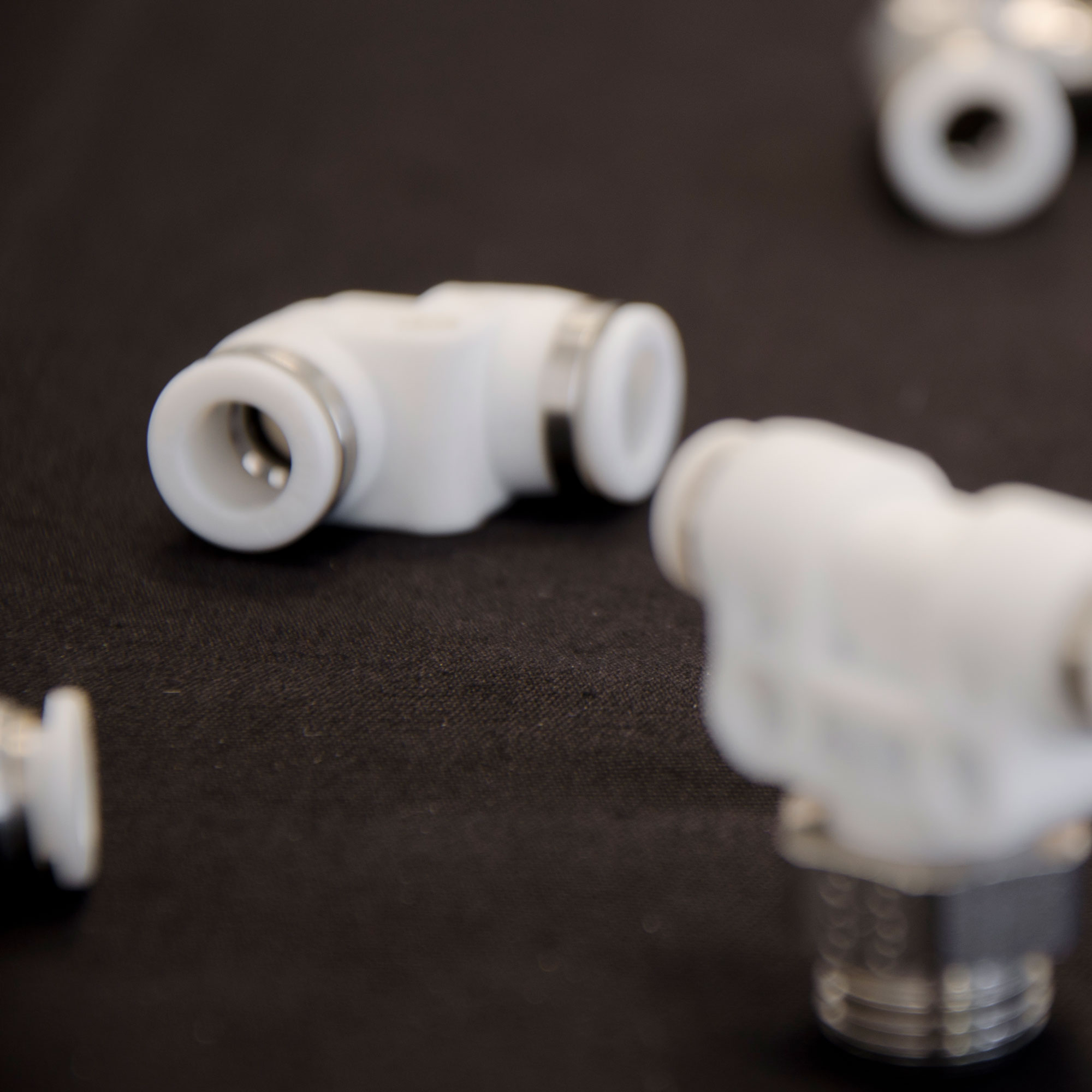

PVDF Automatic Fittings
UNIC is a supplier of PVDF (Polyvinylidene Fluoride) automatic fittings, which allow the instant connection of the tube to the fitting, without the need for tools. An elastic clamp holds the tube on the outer diameter and releases it by pushing the dedicated extractor. These fittings significantly save time when connecting various pneumatic components.
Here are the characteristics of our PVDF automatic fittings:
Standard Availability
Pipe diameter from 4 to 12 mm
Thread Types
From M5 to 3/8”
Materials
Sleeve: AISI 316
Seal: PVDF
Body: PVDF
Extractor ring: PVDF
Clamp: 1.4310
Seal O-Ring: FPM
Nipple: AISI 316
Operating Temperature
Ambient: -20 C to +60 C
Fluids: -20 C to +120 C
Thread Types
Cylindrical gas ISO 228 Class A
Applications
Food industry, chemical and medical industry, water treatment
Compatible Tubing
Nylon – PA11 – PA12 – polyurethane – polyethylene
Find out more about our products
UNIC offers two series of compression fittings:
Series 1
Nickel-plated as standard, featuring a simple profile ferrule. The threads are fine pitch (even for Ø >8).
Series 5
Raw as standard, with a biconical ferrule, and for Ø > 8, the threads are metric.
